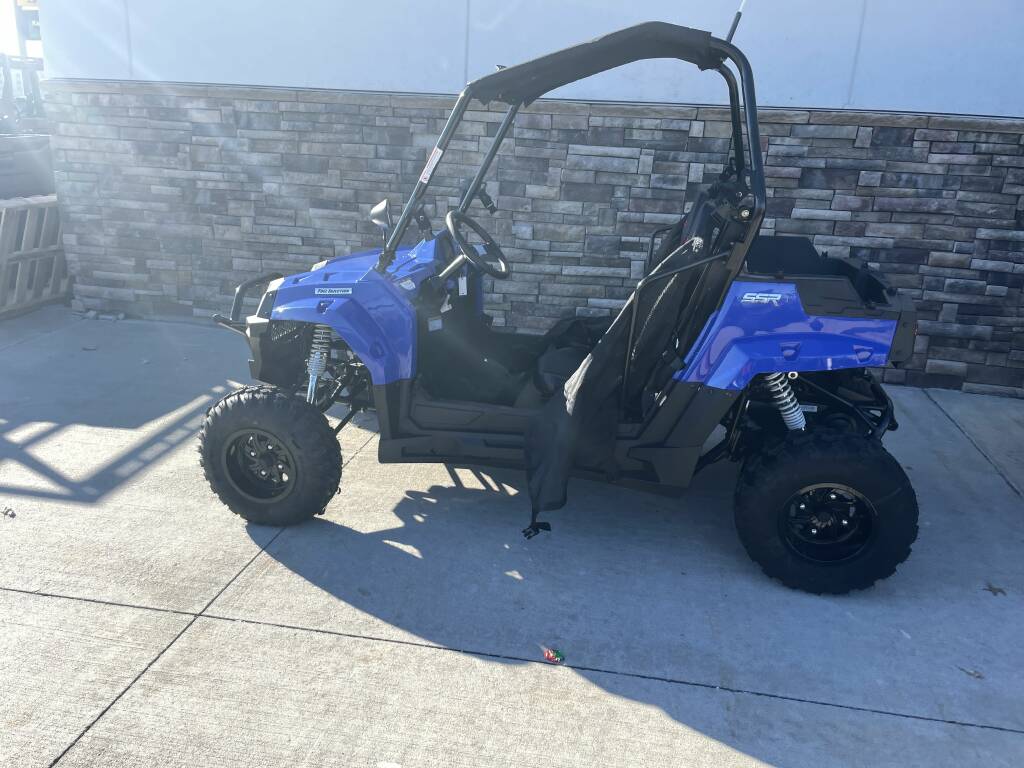

2022 SSR SRU 170RS

Introducing the 2022 SSR Motorsports SRU170RS, a rugged and capable youth-oriented utility vehicle that bridges the gap between hardworking UTV and recreational off-roader. Designed for riders aged 16 and up, this 4×2 utility vehicle combines a powerful engine, versatile cargo capabilities, and safety-focused features for work or play on the property or trails .

Power and Performance

At the heart of the SRU170RS lies a proven 168.9cc, air-cooled, 4-stroke, single-cylinder engine with OHV valve configuration . This powerplant delivers an impressive maximum output of 11.1 horsepower at 8,000 rpm and maximum torque of 8.1 lb-ft at 6,000 rpm . Power is transferred through an automatic CVT transmission with Forward, Neutral, and Reverse (F-N-R) gears, making operation simple and intuitive for younger drivers . The vehicle features reliable electric start for quick and easy ignition .

Speed and Capability

This 2022 model delivers exciting yet manageable performance for its class:

• Verified maximum forward speed: 35 mph
• Engine Displacement: 168.9cc
• Horsepower: 11.1 hp @ 8,000 rpm
• Torque: 8.1 lb-ft @ 6,000 rpm
• Drive Configuration: Rear-wheel drive (RWD) with heavy-duty chain drive
• Fuel Efficiency: Up to 45 mpg (actual mileage varies based on riding conditions, maintenance, tire pressure, cargo, and rider weight)

Chassis and Suspension

The SRU170RS features a robust steel frame with capable suspension components for a smooth, controlled ride across varied terrain :

• Front Suspension: Double A-arm with 7 inches of travel and adjustable pre-load for responsive handling
• Rear Suspension: Swing-arm design with dual shock absorbers, 7 inches of travel, and adjustable pre-load to absorb bumps and maintain traction
• Brakes: Hydraulic disc brakes on both front and rear wheels for reliable stopping power when you need it
• Steering: Manual rack and pinion steering system with steering wheel control
• Tires: Aggressive 21 x 7-10 front tires and 22 x 10-10 rear tires mounted on durable aluminum wheels for excellent traction on dirt, gravel, and light mud
• Ground Clearance: 7 inches for navigating obstacles

Dimensions and Capacity

• Overall Length: 98 inches
• Overall Width: 48 inches
• Overall Height: 60 inches
• Wheelbase: 72 inches
• Ground Clearance: 7 inches
• Dry Weight: 540 lbs
• Fuel Capacity: 2.9 gallons
• Seating: 2 passengers in bucket seats with vinyl upholstery and headrests

Utility and Cargo Features

Unlike standard go-karts, the SRU170RS offers genuine utility capabilities:

• Cargo Box Length: 33 inches
• Cargo Box Width: 16 inches
• Cargo Box Height: 6 inches
• Load Capacity: 330 lbs total vehicle payload
• Bed Capacity: Small cargo bed for hauling tools, gear, or supplies
• Integral Tie-Down Hooks: Secure your cargo during transport
• Brush Guard: Front protection for trail riding
• Bash Plate: Front underside protection

Premium Features for Comfort and Safety

The 2022 SSR Motorsports SRU170RS comes packed with thoughtful features that enhance both comfort and safety:

• LED Lighting: Full LED headlight package for excellent visibility in low-light conditions
• Folding Seat: Driver/passenger seat folds for access or storage
• Cupholder: Convenient built-in cupholder
• Soft Cab Door Material: Cab doors provide weather protection
• Frame Construction: Heavy-duty steel frame with plastic body panels
• Age Recommendation: Manufacturer recommends minimum age of 16 years
• Warranty: 6-month limited warranty
