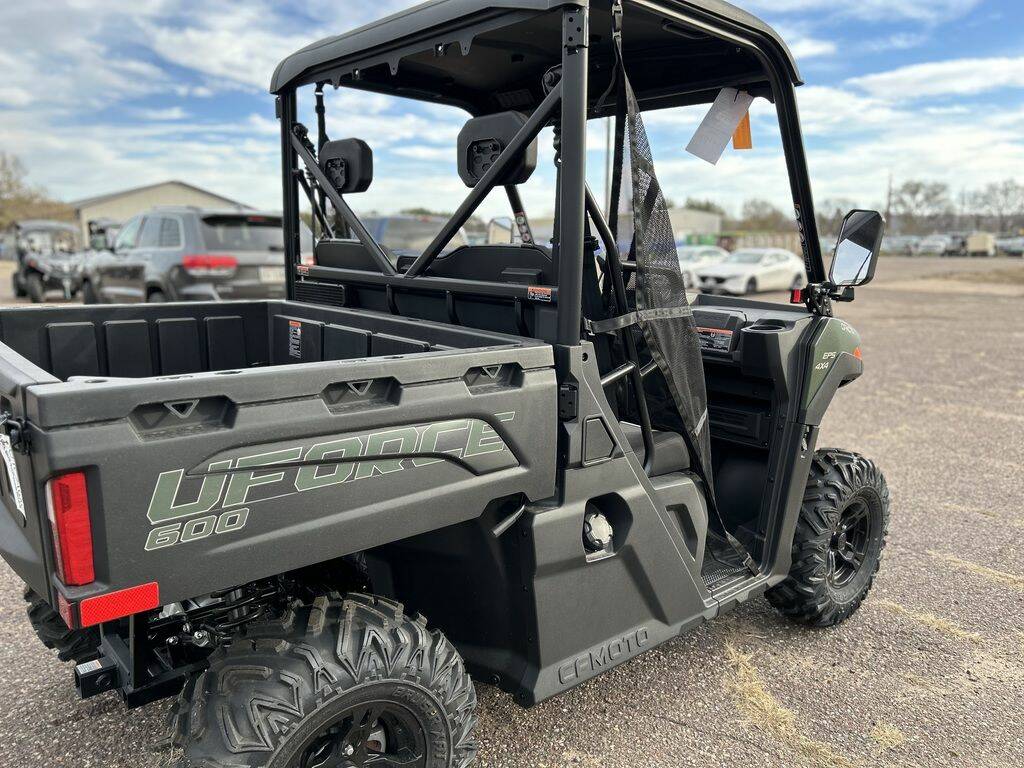

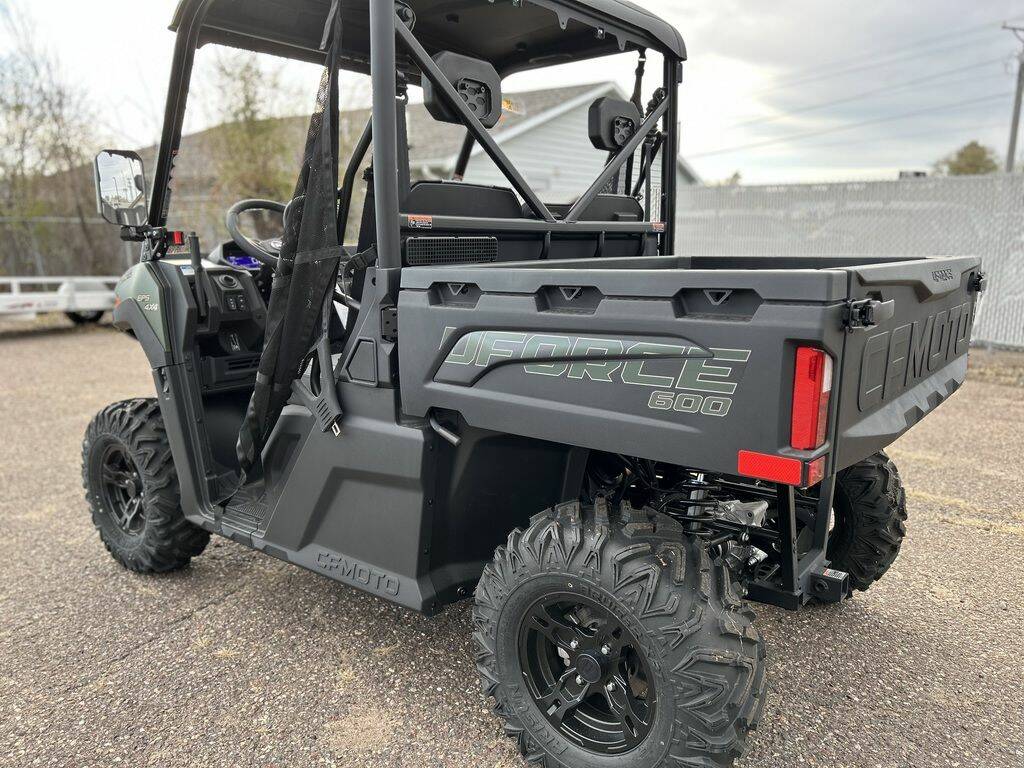

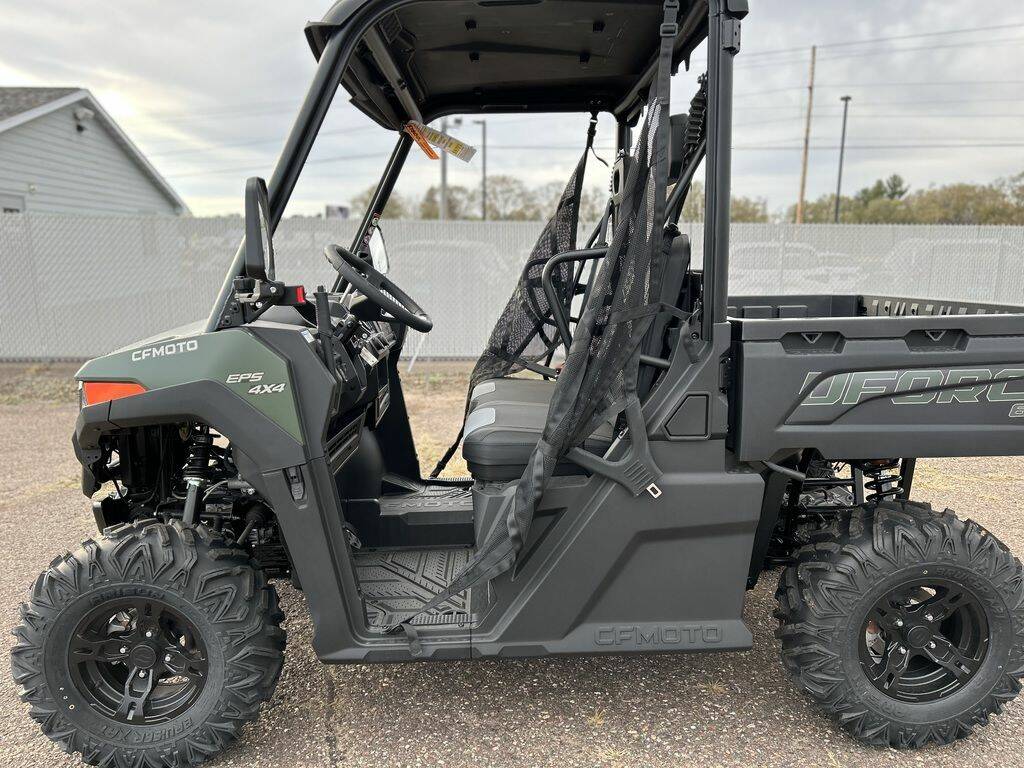

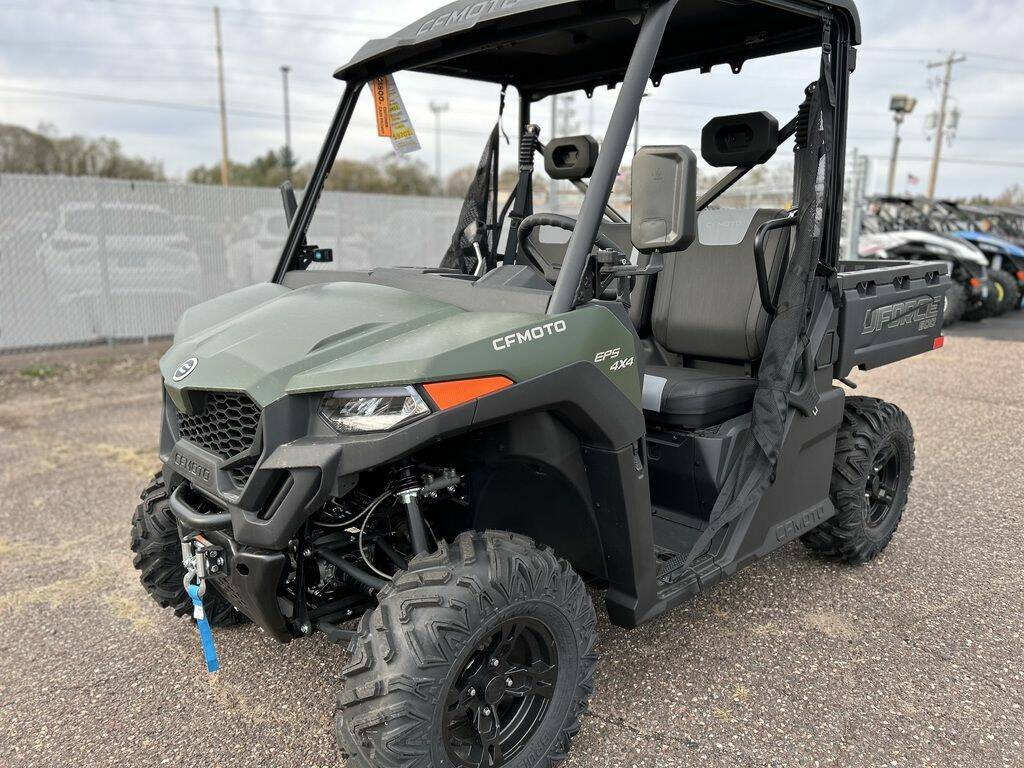

New 2023 CFMoto UForce 600

Experience the perfect blend of power, capability, and versatility with the 2023 CFMOTO UFORCE 600. Whether you’re tackling farm work, managing property, or enjoying weekend trail adventures, this entry-level utility vehicle puts performance in your hands to forge your path toward work, fun, or the balance in between . Bursting with standard features including Electric Power Steering (EPS), a 3500 lb winch, and a digital display dashboard, the UFORCE 600 delivers rugged durability and superior off-road capabilities at an affordable price point .

Power and Performance

At the heart of the UFORCE 600 lies a liquid-cooled, 580cc single-cylinder, 4-stroke engine featuring SOHC valve configuration with 4 valves . This advanced powerplant delivers:

• Maximum Horsepower: 40 HP @ 6,250 rpm
• Maximum Torque: 36 lb-ft (48.8 Nm) @ 5,250 rpm
• Displacement: 580 cc
• Bore x Stroke: 91 x 89.2 mm (3.6 x 3.5 in)
• Compression Ratio: 10.7:1
• Cooling: Liquid-cooled for consistent performance
• Fuel System: Bosch Electronic Fuel Injection (EFI)
• Ignition: ECU
• Starter: Electric
• Fuel Type: Regular gasoline
• Battery: 30 Amp

The engine is mated to a Continuously Variable Transmission (CVT) featuring the CVTech-IBC clutch system for smooth power delivery . Gearing includes Low, High, Neutral, Reverse, and Park (L / H / N / R / P) for complete control in all situations .

Speed and Capability

The UFORCE 600 delivers reliable performance for work and trail use:

• Verified top speed: 60 km/h (approximately 37 mph)
• Note: Actual top speed varies based on terrain, passenger/cargo weight, tire pressure, and riding conditions. The vehicle is optimized for utility work and trail riding rather than high-speed sport driving.

Drive System and Capability

The UFORCE 600 features a sophisticated drivetrain designed for maximum versatility:

• Drive System: Selectable 2WD / 4WD with locking front differential
• Number of Driveline Modes: 2 modes (2WD/4WD)
• Differential Lock Location: Front
• Power Train: 2WD / 4WD with on-the-fly selection

Towing and Payload Capacity

The UFORCE 600 delivers impressive work capability:

• Towing Capacity: 2,000 lbs (907 kg) (Note: UK model lists 700 kg/1,543 lb)
• Rear Box Capacity: 600 lbs (272 kg) with tilting cargo box (Note: UK AGRI model lists 250 kg/551 lb)
• Rear Hitch Type: Receiver
• Winch: Standard 3,500 lb winch with remote control
• Cargo Bed Tilt: Yes, gas-assisted for easy unloading
• Integral Tie-Down Hooks: Yes

Suspension and Ride Quality

The UFORCE 600 features independent suspension all around for a smooth, comfortable ride:

Front Suspension:

• Type: Independent Double A-Arm with hydraulic shock absorbers
• Travel: 200 mm (7.87 inches) (UK model: 200 mm front / 210 mm rear)
• Adjustable Pre-Load: Yes

Rear Suspension:

• Type: Independent Double A-Arm with hydraulic shock absorbers
• Travel: 200 mm (7.87 inches) (UK model: 210 mm)
• Number of Rear Shock Absorbers: 2
• Adjustable Pre-Load: Yes
• Rear Stabilizer Bar: Yes

Ground Clearance: 270 mm (10.6 inches) – ample clearance for navigating obstacles and rough terrain

Steering and Brakes

• Steering: Electric Power Steering (EPS) with steering wheel control (standard on EPS model)
• Steering Type: Power-assisted for effortless maneuverability
• Front Brakes: Hydraulic disc with CBS (Combined Brake System) (4-wheel hydraulic disc system)
• Rear Brakes: Hydraulic disc
• Brake Actuation: Hydraulic

Tires and Wheels

• Front Tires: AT 25 x 8-12 (some sources: 26 x 8 – 12)
• Rear Tires: AT 25 x 10-12 (some sources: 26 x 10 – 12)
• Front Wheels: 12-inch aluminum alloy (12 x 6 in)
• Rear Wheels: 12-inch aluminum alloy (12 x 7 in)
• Wheels Composition: Aluminum

Dimensions and Capacities

• Overall Length: 111 inches (2,820 mm)
• Overall Width: 57.3-63 inches (1,470 mm)
• Overall Height: 75.5-76.7 inches (1,950 mm)
• Wheelbase: 76.7 inches (1,950 mm)
• Ground Clearance: 10.6 inches (270 mm)
• Seat Height: 17.7 inches (450 mm)
• Curb Weight (with all fluids): 1,411 lbs (640 kg) (Note: some sources list 570 kg/1,257 lb dry weight)
• Fuel Capacity: 9.25 gallons (35 L)
• Turning Radius: 29.9 feet
